24meter Length Long Reach Boom and Arm for Hitachi Zx870 Excavator

Einzelheiten zum Produkt

Zertifizierung: CE, ISO9001: 2000, SGS

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1

Preis: 35000

Beste Preis erhalten

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Hitachi ZX870 excavator long boom arm, 24-meter excavator long reach arm, Hitachi excavator extended reach boom


Modell Nr.:	HD-LDB450	Eimerkapazität:	0.5m3
Material:	Q345B	Boomlänge:	13000mm
Armlänge:	11000 mm	Maximale Grabungstiefe:	18000mm
Maximal umfangreicher Umfang:	23600 mm	Höchstgrubenhöhe:	17300 mm
Falthöhe:	3400 mm	Anzugbagger-Tonnage:	85 Tonnen
Eimergröße:	1.5m3	Produktionskapazität:	1000Set/year
Maximale Grabkraft bewaffnen:	109 (ISO)	Schaufel Max Dig Force:	151 (ISO)
Grad der Schaufeldrehung:	170

Modell Nr.:	HD-LDB450
Eimerkapazität:	0.5m3
Material:	Q345B
Boomlänge:	13000mm
Armlänge:	11000 mm
Maximale Grabungstiefe:	18000mm
Maximal umfangreicher Umfang:	23600 mm
Höchstgrubenhöhe:	17300 mm
Falthöhe:	3400 mm
Anzugbagger-Tonnage:	85 Tonnen
Eimergröße:	1.5m3
Produktionskapazität:	1000Set/year
Maximale Grabkraft bewaffnen:	109 (ISO)
Schaufel Max Dig Force:	151 (ISO)
Grad der Schaufeldrehung:	170

Beschreibung

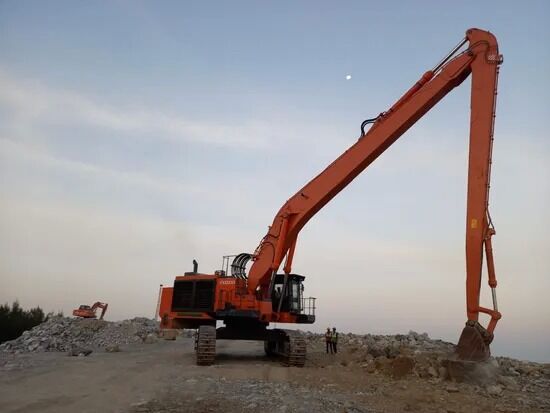

24meter Length Long Reach Boom and Arm for Hitachi Zx870 Excavator

Product Description

Excavator Long Reach Booms are engineered for demanding applications including:

River dredging operations
Port construction projects
Railway infrastructure development
Underground construction work

These booms deliver exceptional operational range, superior efficiency, and enhanced job site safety.

Technical Specifications

Excavator Tonnage	20-25Ton	30-36Ton	40-50Ton
Total Length (mm)	16000-18000	18000-22000	20000-24000
Max Digging Radius (mm)	15600-17600	17500-21500	19500-23500
Max Digging Depth (mm)	10800-12600	12100-15410	14000-16410
Max Digging Height (mm)	11800-15600	15300-17170	15600-17170
Bucket Sizes (m³)	0.5	0.65-1.0	0.5-0.8
Arm Max Dig Force (ISO)	64-82 kN	94-167 kN	78-151 kN

Standard Package Includes

1 Long Reach Boom assembly
1 Extended Arm assembly
1 Bucket (digging or clean configuration)
4 Metal pipes with hoses
8 Connection pins
1 Set H Linkages
1 Set lubricating pipes
1 Bucket cylinder
Optional counterweight for machine balance
Optional hydraulic pipelines for attachments

Manufacturing Excellence

Precision Fabrication Process

45° steel plate beveling prior to welding
Robotic welding for consistent, durable seams
30m boring machine for micrometer-level accuracy
Automated pipe welding to prevent oil leakage

Premium Components

Custom hydraulic cylinders from S-ANY factory
40Cr material pins hardened to 55HRC+
Tempered and ground for enhanced durability
EATON brand high-pressure hydraulic hoses

Finish & Protection

We use KANSAI paint from Japan, the original supplier to major excavator manufacturers including Hitachi and Kobelco, ensuring perfect color matching and long-lasting protection.

Industry Recognition

Featured exhibitor at:

2018 Shanghai Bauma Exhibition (Booth W3-628)
2024 Shanghai Bauma Exhibition (Booth W2-100)

Warranty & Support

12-month warranty from installation date:

Steel structure: Documentation required for defect verification
Accessories (cylinders, pipes, hoses, pins): Replacement parts provided for verified defects
Remediation guidance provided for confirmed manufacturing defects
